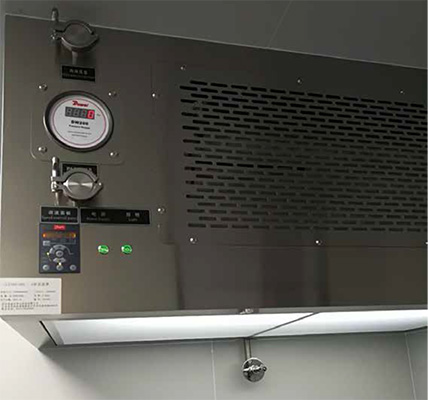

Class A Unidirectional Flow Hood
Class A unidirectional flow hood is an air purification equipment that provides Class A unidirectional flow and creates a local high cleanliness environment. Its working principle is to pass the air through the high efficiency filter at a certain wind speed, and the pressure is equalized by the damping layer, so that the clean air flow is unidirectionally flowed to the working area, so as to obtain the flow pattern and cleanliness required by the working protection area.

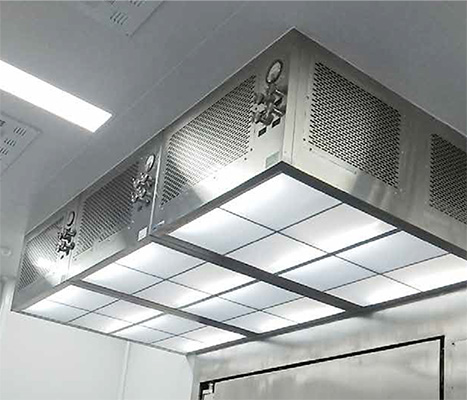

Class A unidirectional flow hood can be used singly or in multiple combinations. The A-level one-way flow hood working area is the aseptic core area. The operator needs to open the equipment from the B-level background environment according to the defined SOP to perform process operations and interventions. These actions need to be formulated according to the risk of the product. The operator should avoid contact with the sterile core part, if contact is required, isolation gloves or half-length clothes should be used.
Technical Parameters

1. Double-layer negative pressure structure, no risk of leakage
2. The liquid tank is of high quality, high efficiency, high cleanliness, ensuring sterility
3. Consistent inside and outside, clean and without dead ends
4. Rich control modes to meet different requirements of customers
5. Multiple pressure equalization, uniform wind speed, good unidirectional flow pattern
6. Imported EBM fan, large air volume margin, small pressure difference change, reliable performance



Model number Dimensions L×W×D Work area L×W Rated wind speed (m/s) Cleanliness of working area Noise (dB) Illumination (Lx) Power (kW)
UFH-120.60 1200×600×600 1200×600 0.45±20% Class A 65 ≥300 0.25
UFH-100.100 1000×1000×600 1000×1000 0.4
UFH-120.75 1200×750×600 1200×750 0.3

The specifications listed in the table are for customers' reference only. Most of the A-level unidirectional flow is designed and manufactured according to the customer's URS.
